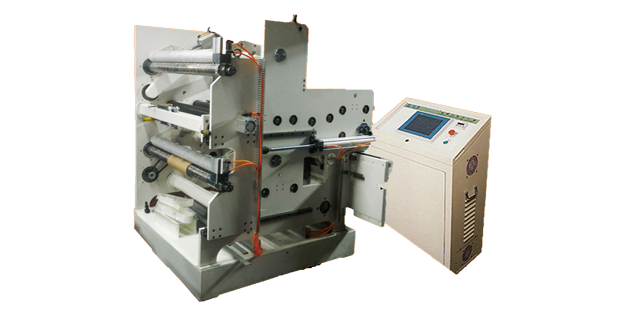

CLC-850AS.1300AS.1600AS 精密分條機 :
立式中心捲取. 小分條表面捲取
規格 :
最大材料寬度：850mm.1300mm.1600mm
最大原料直徑: 500mm~~800mm(厚度依不同材料特性)
最大捲取直徑: 400mm〜600mm
最小分條寬度: 20mm。 50mm（依不同材料的特性）
紙管直徑3"（或根據客戶要求）
最大機器速度250M / min。
適用材料 :
PET. CPP. PVC . PC. HDPE. BOPP. PP收縮膜，塗佈紙，電鍍紙，鋁箔，玻璃紙，自粘紙，銅箔
放料部分 :
配備自動夾取( 上下左右)3"＆6"英寸套頭，適合裝載和卸載較重的材料。
配備一個邊緣自動跟踪設備（EPC）精準對邊。
分條部分 :
配有自動張力控制器，使張力控制穩定，操作方便。
使用圓刀，平刀，氣壓切刀。和其他不同的分條方法。
配備一套計米器，方便計算長度。
廢料吹風排除。
捲取部分 :
配有自動張力控制，可調節送料張力
壓料設備, 緊實捲取
滑差軸捲取,氣脹軸捲取
接料部分 :
加裝接料平台
加裝卸料軸
紅外線對位裝置
Model CLC-850AS. 1300AS.
1600AS Precision Slitting machine :
Double shaft center of the rewinder
Specification :
The width :850mm.1300mm.1600mm
Max. material roll dia. : 500mm~~800mm
The thickness of material : 20u~1.0mm( depends on different materials)
Max. rewind diameter :400mm~600mm
Min. slitting width : 20mm. 50mm (depending on different materials)
paper tube diameter: 3 " (or according to customer requirements)
Maximum machine speed: 250M / min.
Materials :
PET, CPP, PVC (rigid)PC, HDPE.BOPP.PP shrink film, coating paper, electroplated paper, aluminum foil, cellophane, self-adhesive paper , aluminum foil.
Discharge part :
Equipped with: auto-gripping axis with 3 "& 6 chuck ( free move up &down
Right & left)
Equipped with : automatic tracking device (EPC)
Equipped with :automatic tension controller, so that tension control
Equipped with : round knives, flat knife, air-pressure cut knife. and other different cutting methods.
Equipped with :run- meter set easy to calculate the length of the winding.
Rewinding part :
Equipped with: auto tension control, can adjust the feeding tension.
Equipped with: Air-inflated shaft & Air-slip shaft.
Waste disposal :
Equipped with: blowing style of waste materials.
Optional accessories :
Discharge φ3 "/ 6" inflatable shaft.
No axis of the discharge seat (electric left and right movement).
Alignment Auto Tracker (LPC).
exchange materials plate.
A special round knife / flat knife with under 20mm.
